Product Specifications

Part Number:R35620CV
UPC Number:765809919457
Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:
Media:Cellulose
Height:8.98 (228)*
Outer Diameter:3.94 (100)*
Inside Diameter Top:2.37 (60)*
Inside Diameter Bottom:Closed:
Beta Ratio:2
Nominal Micron Rating:20
Operating Temp. (min):-13
Operating Temp. (max):248
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.

No Gaskets found..

Principle Application:

Principle Application:Various Industrial applications
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: R35620CV

Error: Embedded data could not be displayed.

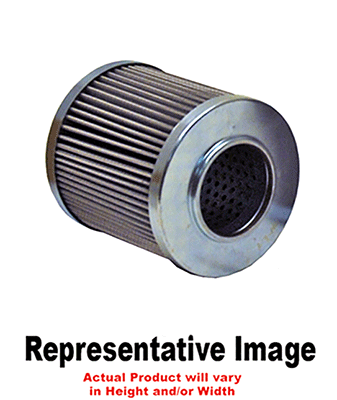

Representative Image
For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
