Product Specifications

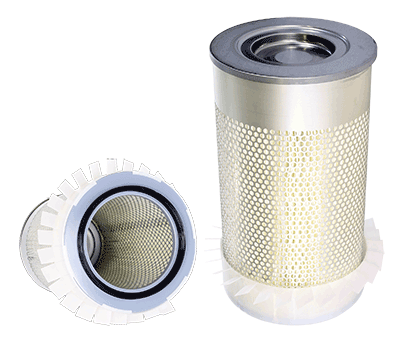

Part Number:42517
UPC Number:765809425170
Style:Air Filter w/Fin
Service:Air
Type:
Media:Cellulose
Height:14.375 (365)*
Outer Diameter Top:7.937 (202)*
Outer Diameter Bottom:9.94 (252)*
Inside Diameter Top:Closed:
Inside Diameter Bottom:5.312 (135)*
Ends:Metal
Fins:Yes
CFM:225
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.

No Gaskets found..

Principle Application:

Principle Application:IHC Wheel Tractors (Outer used w/ 42516)
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 42517

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
