Product Specifications

Part Number:51472
UPC Number:765809514720

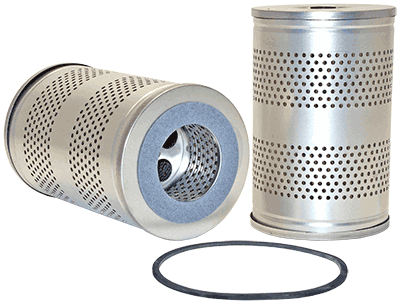

Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Cellulose
Height:7.062 (179)*
Outer Diameter:4.53 (115)*
Inside Diameter Top:0.567 (14)*
Inside Diameter Bottom:2.26 (57)*
Beta Ratio:2/20=30/47
Nominal Micron Rating:25
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
15382 Packed 5.179 (132)*4.805 (122)*0.093 (2)*

Principle Application:

Principle Application:Vickers Hydraulic (Optional Applications) (25 Micron)
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 51472

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
