Product Specifications

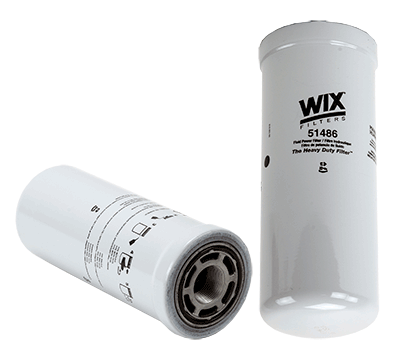

Part Number:51486
UPC Number:765809514867
Style:Spin-On Hydraulic Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:9.49 (241)*
Outer Diameter Top:3.81 (97)*
Outer Diameter Bottom:Closed:
Thread Size:1 3/8-12
Beta Ratio:2/20=6/10
Burst Pressure-PSI:1000
Max Flow Rate:24-28 GPM
Nominal Micron Rating:9
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.762 (70)*2.484 (63)*0.278 (7)*

Principle Application:

Principle Application:Bomag Stabilizers, John Deere Tractors, Sakai Rollers
All Applications
