Product Specifications

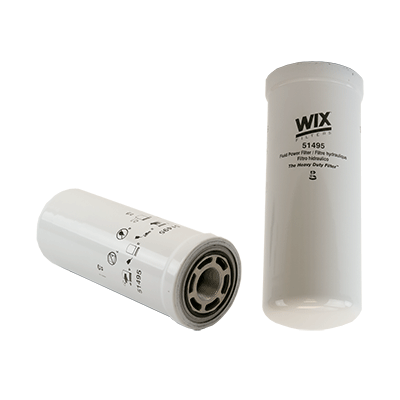

Part Number:51495
UPC Number:765809514959
Style:Spin-On Hydraulic Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:9.86 (250)*
Outer Diameter Top:3.81 (97)*
Outer Diameter Bottom:Closed:
Thread Size:1 3/8-12
By-Pass Valve Setting-PSI:None
Beta Ratio:20/75=17/23
Burst Pressure-PSI:1000
Max Flow Rate:24-28 GPM
Nominal Micron Rating:17
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 2.762 (70)*2.484 (63)*0.278 (7)*

Principle Application:

Principle Application:Case, Cat, Fiat-Allis, John Deere, Komatsu, Other (17 micron)
All Applications
