Product Specifications

Part Number:51508
UPC Number:765809515086

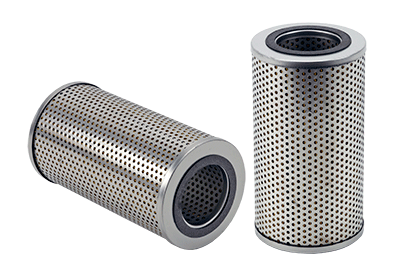

Style:Cartridge Hydraulic Metal Canister Filter
Service:Hydraulic
Type:Full Flow
Media:Enhanced Cellulose
Height:8.094 (206)*
Outer Diameter:4.375 (111)*
Inside Diameter:2.43 (62)*
Beta Ratio:2/20=6/17
Nominal Micron Rating:16
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Attached 3.250 (83)*2.545 (65)*0.047 (1)*

Principle Application:

Principle Application:Cat, Donaldson HHK05 Housing
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 51508

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
