Product Specifications

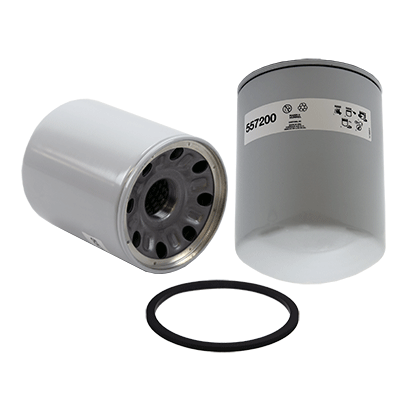

Part Number:57200
UPC Number:765809572003
Style:Spin-On Hydraulic Filter
Service:Hydraulic
Type:Full Flow
Media:Microglass
Height:6.67 (169)*
Outer Diameter Top:5.08 (129)*
Outer Diameter Bottom:Closed:
Thread Size:1 1/2-16
Beta Ratio:20/75=8/18
Burst Pressure-PSI:470
Nominal Micron Rating:3
(  )* denotes metric

Gasket Diameters

NumberO.D.I.D.Thk.
Packed 4.98 (126)*4.42 (112)*0.185 (5)*

Principle Application:

Principle Application:Genie, Ditchwitch, Pall, Vickers Hydraulics (3 Micron)--if L-shaped gasket required, order 15658 - order separately - if wide groove gasket required, order 15661 - order separately
All Applications
Best viewed in Chrome, Firefox, IE9 and above

Part Number: 57200

Error: Embedded data could not be displayed.


For reference only. There are no express or implied warranties with respect to products selected by size, feature or cross reference. Warranties only apply to products selected according to the Vehicle Application Listing. No product has been certified or warrantied for Aviation use.
